Canon HV20 Wide Lens

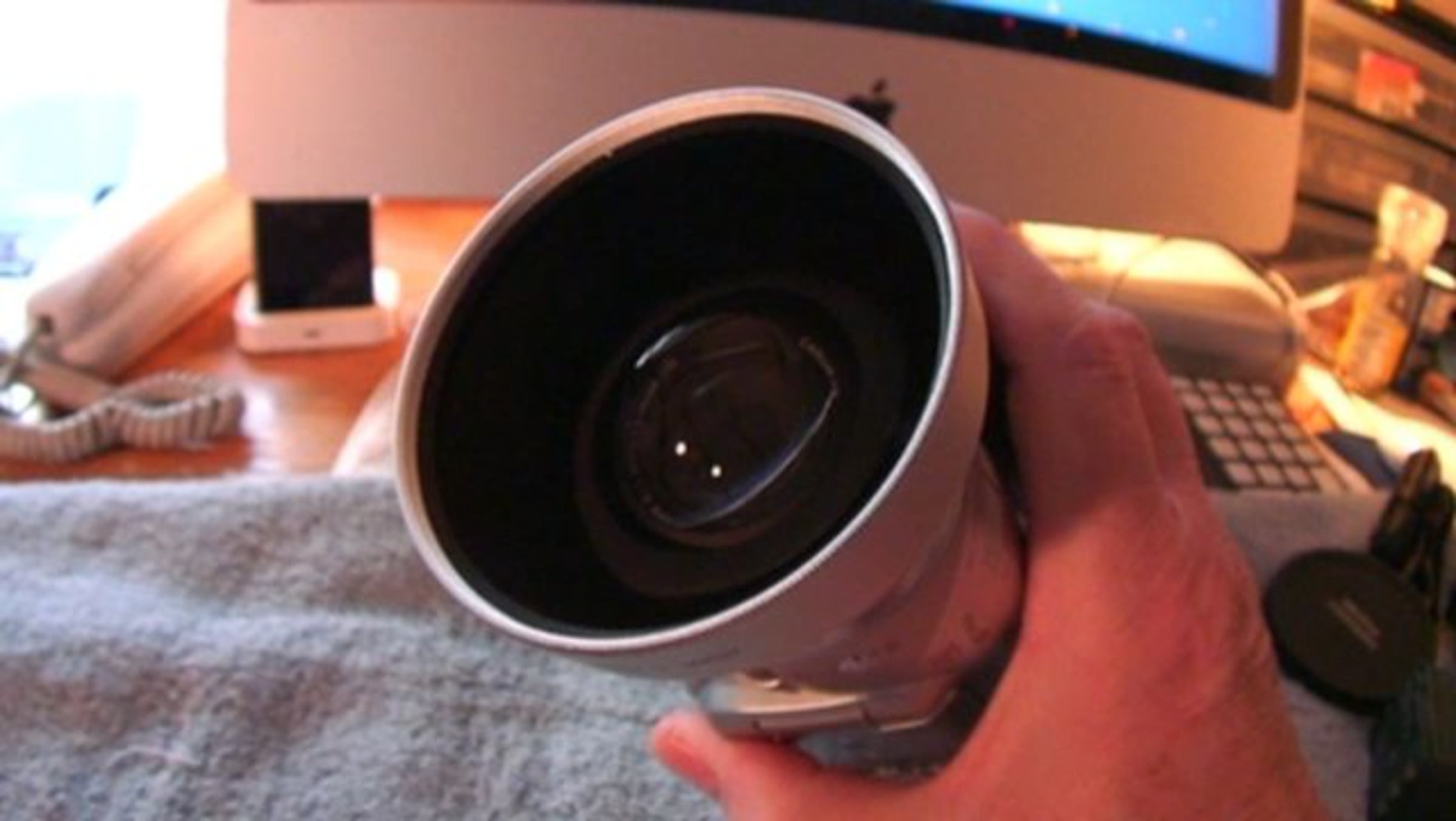

Here is a 0.45x wide lens for a Canon HV20 or a Canon HV30 - this wide lens has 12x zoom through so it works well with the Canon 10x zoom - it has a rear thread that is bigger than the Canon lens thread - that's good - and it has a thread in front so filters can be attached.

Canon HV20 and HV30 mounting thread: 43mm
0.45x wide lens - 52mm - does not vignette
Front filter thread size: 67mm
A 72mm or 77mm Step-Up ring works with front filters

CameraWorks Northwest
- I bought these 0.45x lenses at CameraWorks Northwest
- cameraworksnw.com/
- 0.45x item number may be: 370015012540

JOHN LONGENECKER
800 470-4602
PictureAmerica@mac.com

35 Likes

  • Paul Siwko-Bajon 2 years ago
    Very cool info! When did you get this lens and step up ring? Is this the current info regarding the Camera Works Northwest seller? I can't believe that you have got this wide angle lens for such a low price. Do you know how this lens would compare to the original Canon wide lens designed for Hv20? Any difference?
  • Picture America plus 2 years ago
    Canon HV20 and HV30
    35mm equivialent: 53mm x 10 = 530mm
    53mm x 0.7x = 37mm x 10 = 370 mm

    The Original Canon wide lens is very good.
    0.7x - zoom through 10x
    - works with Canon HV20 and HV30
    Yet - it has no front threads
    thus, no filters can be easily attached

    The 0.45x works just fine
    - 67mm front thread
    - wide and zoom through more than 10X
    - works with Canon HV20 and HV30
    - available now in 2008

    Canon HV20 and HV30
    35mm equivalent: 53mm x 10 = 530mm
    53mm x 0.45x = 23.85mm x 10 = 238.5 mm

    CameraWorks Northwest - 800-527-8599
    - cameraworksnw.com/
    - I bought these 0.45x lenses
    at CameraWorks Northwest
    - 0.45x item number may be: 370015012540

    Canon HV20 and HV30 mounting thread: 43mm
    Step-Up Ring: 43mm to 52mm / required
    0.45x Rear Thread: 52mm
    - bigger than 43mm - no wide vignette
    0.45x front thread: 67mm for filters / lens cap
    - can step up to 72mm - 77mm - or larger

    PictureAmerica
    JOHN LONGENECKER
    800 470-4602
  •
  • Paul Siwko-Bajon 2 years ago
    John, thanks for all the info. I do appreciate it. Gptta get it.
  •
  • Vladimir Talijan 2 years ago
    John, can you please upload some full resolution clip with that wideangle lens ?

    Thanks
  •
  • Picture America plus 2 years ago
    Here is an image link
    videohostusa.com/WideLens.png
  •
  • Mark Jensen 2 years ago
    very nice thanks,
    do you have any HD video with and without the lens to compare?
  •
  • Picture America plus 2 years ago
    Whoops!
    I will have to shoot some images.
    I keep the 0.45x wide lens on pretty much all the time.
    0.45x zoomed through 10x to 238.5mm is typically pretty long for what I shoot. Often I am up close and wide. A 53mm wide is typically not wide enough for me.

    HV20 / HV30 lens info:
    Optical zoom = 10x
    35mm equivalent: 53mm x 10 = 530mm - no wide lens
    53mm x 0.45x = 23.85mm x 10 = 238.5 mm - wide lens
  • Mark Jensen 2 years ago
    cool thanks, looking forward to it :) would be great to see a comparison of the same footage...
  •
  • Michael Schocker 1 year ago
    Just put in my order.
  • Picture America plus 1 year ago
    Michael
    Let me know how you like it when you get it.
    Remember - the thread size at the back of the wide lens ought to be LARGER than the thread size of your camera lens.

    What camera will you put it on.
    It works fine an a Canon HV20/30

    JOHN LONGENECKER
  •
  • Michael Schocker 1 year ago
    It's going on the HV30.
    I also ordered this:
    fotodiox.com/shop/product_info.php?cPath=1_17_44&products_id=569
    Going to make a review video when I get them both.
  •
  • Michael Schocker 1 year ago
    Is this the battery you are talking about?
    bestbatt.com/Canon_BP_2L24H_Battery_p/bbbp2l24h.htm
  • Picture America plus 1 year ago
    Yes.
    Canon BP-2L24H Li-Ion Rechargeable Camcorder Battery
    In January 2008 BestBatt sold it for $35
    Now, in June 2008 BestBatt has a price of $49

    It may be 2400 mAh

    JOHN LONGENECKER
  •
  • Michael Schocker 1 year ago
    Just ordered the Sennheiser MK400 shotgun mic.
    Also, thinking about a mini stabilizer.
    After I get that I will do one mother of a review video.
  •
  • gre3n dotnet 1 year ago
    What does the lens hood do?
  •
  • Tim Collins 1 year ago
    Great! Where did you get the black apple keyboard? custom paint?
  •
  • Paul Shmelov 5 months ago
    Thanks this was helpful. Let me get this clear:
    1.Get a 43/52mm step up ring
    2.Get a fisheye thats 52mm like this one and have no vignette?
    bhphotovideo.com/c/product/310664-REG/Cavision_PFA03X58DFA04X58_PFA03X58_DFA04X58_0_35x_Fish_Eye_Lens.html
  •
  • Picture America plus 5 months ago
    Your Canonvision lens is 0.35x
    BH: tinyurl.com/o4xull

    The one I used is 0.45x - it zooms through 10:1+
  •
  • Paul Shmelov 5 months ago
    Wouldn't it still work though? Or is your technique only for wides?
  •
  • Picture America plus 5 months ago
    The Canonvision lens is 0.35x'
    ought to work just fine

    Your lens may not zoom through all in focus.
    The wide fish eye ought to be fine at full wide

    See BH: tinyurl.com/o4xull

    JL
  •
  • johnny rinsma 5 months ago
    hi it does not have the rubbish fish eye effect I hope?
  •
